LA-210A 2 way 10 inch line array

Place of Origin : Guangzhou,Guangdong,China

Brand Name : TIR

Certification : CE ROHS

Model Number : LA-210A

MOQ : two pieces

Price : $1-10000

Packaging Details : good quality carton box or flightcase

Delivery Time : 3-15 days

Payment Terms : T/T,western union

Supply Ability : 10000 pieces per month

Contact Now

LA-210A 2 way 10 inch line array

line array sound system line array speaker jbl line array line array loudspeaker line array audio line array system passive line array active line array

LA-210A is a compact module for line array system. Reproduction for low frequency is handled by two 10" woofer speakers. High frequency is assigned to pairs of compression driver, which utilizes two 1.75" compression drivers with titanium diaphragm. The driver is coupled with an acrylic wave adaptor, which allows an even wave performance. The dual phase adaptors design is another unique technology, which leads to high flux density and to enhancement of sound.pressure.

Model	LA-210A
Type	Line array system
Frequency Response	65Hz-20KHz±3dB
Power handling	LF 700W(RMS)1400W(PEAK)
	HF 180W(RMS)360W(PEAK)
Other functions	built-in crossover(LA-210A)
Sensitivity	LF 99dB(1W@1M)
	HF 108dB(1W@1M)
Max@S.P.L	LF 127dB(PEAK/1M)
	HF 127dB(PEAK/1M)
LF section	2×10"(260mm) woofer
	75mm(3in)coil
Nominal impedance	8 ohm
HF section	2x1.75"compression driver with44mm
	titanium diaphragm
Nominal impedance	8 ohm
Output section	2-channel
Dispersion pattern	110o H×9o V
Surface finish	Black paint
Array design	Arrays of less than 3×LA-210A will
	provide poor dispersion control and are
	neither recommended nor supported
Speaker cables	1(+)1(-) 2(+)2(-)
Input connectors	2×NL4MP speakon
Recommend crossover	LF 70Hz-2KHz
	HF 2KHz-20KHz
Dimensions	546×291×410mm(W×H×D)
Package dimensions	610×360×480mm/0.11cbm
Enclosure	Birch Plywood
Gross weight	35kg

LA-210A 2 way 10 inch line array

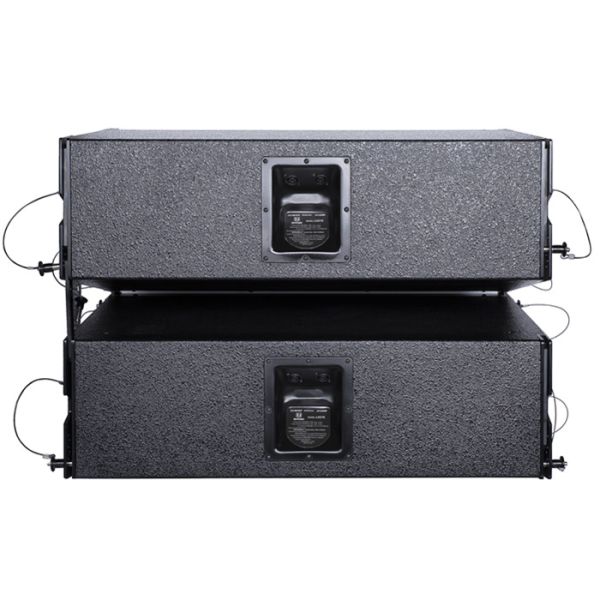

LA-210A 2 way 10 inch line array Images
